Products Features
- Professional powered two way line array speaker
- 250W RMS Class-D digital amplifier
- Knob for Volume control of input and DSP
- Programmable Built-in DSP includes 4 modes for different application.
- Durable PP cabinet and metal grille

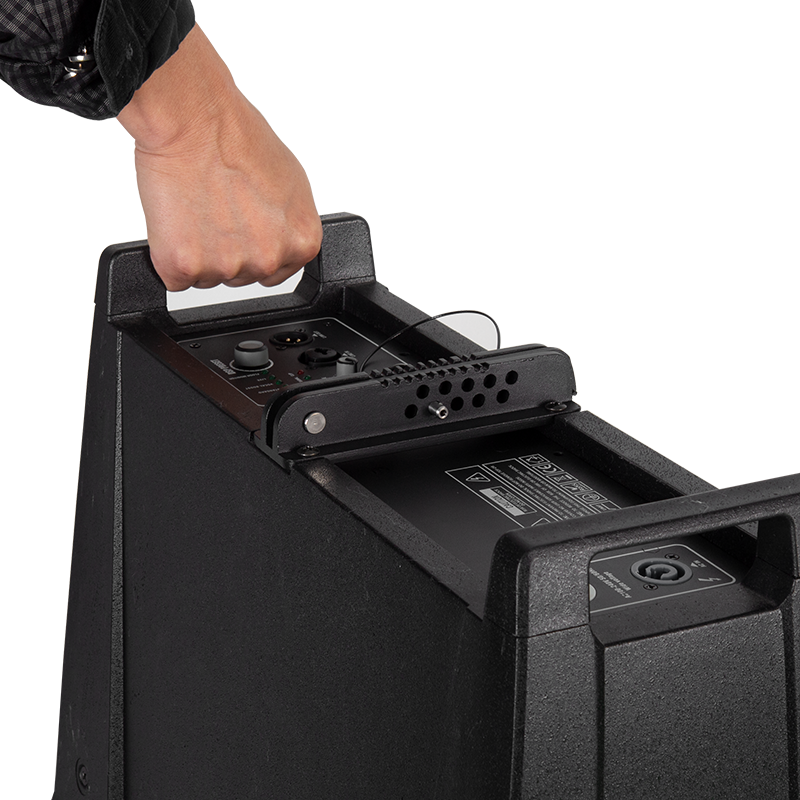

- Two side ergonomic handles for easy transport
- Ideal for outdoor events, parties, or travel performance
---------------------------------------------------------------------------------------------------------
Products Description
 |
 |
 |
||||||
|

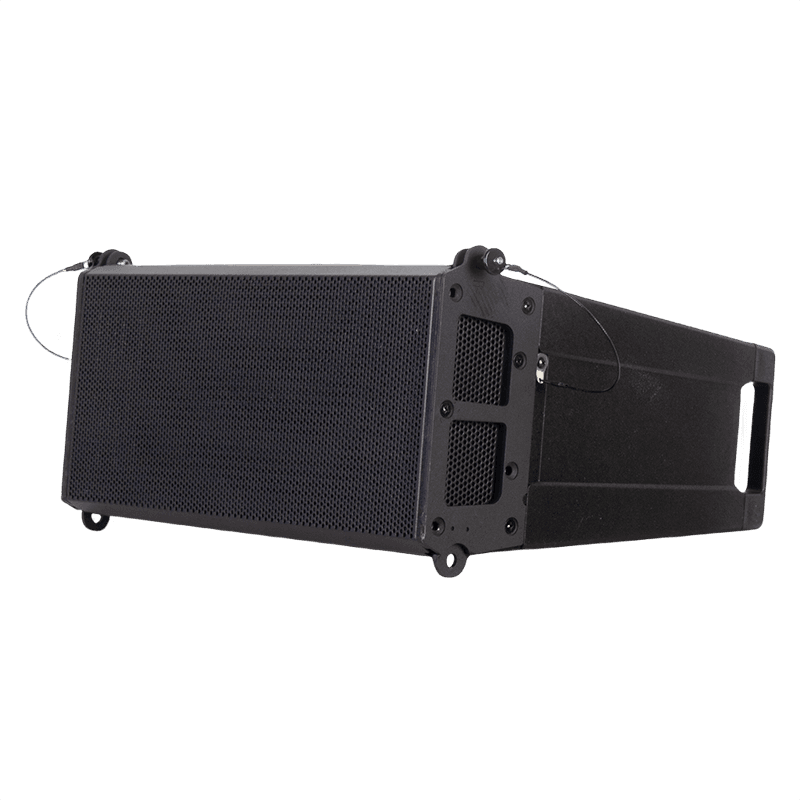

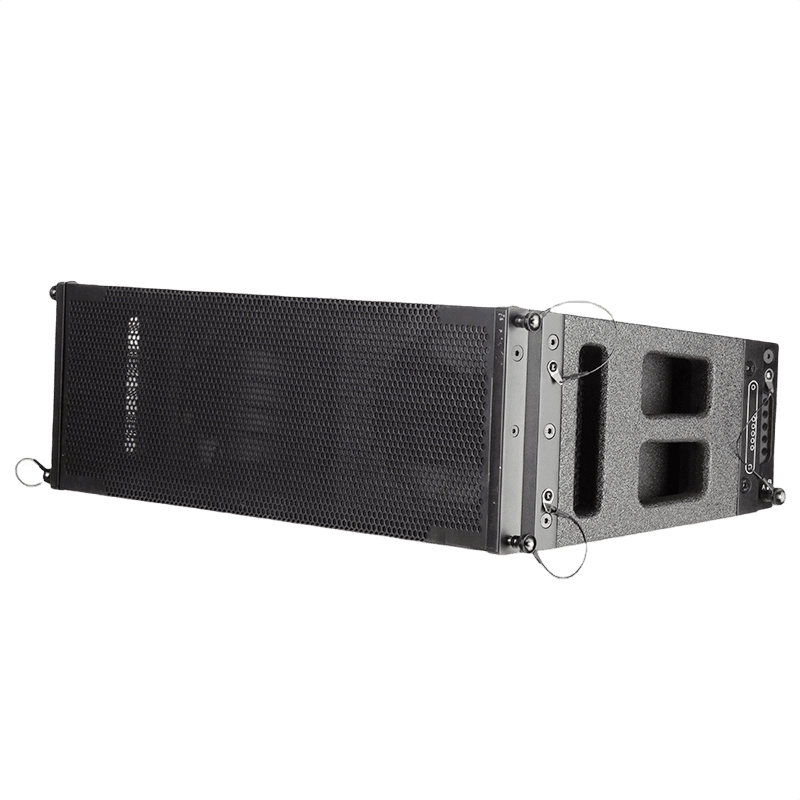

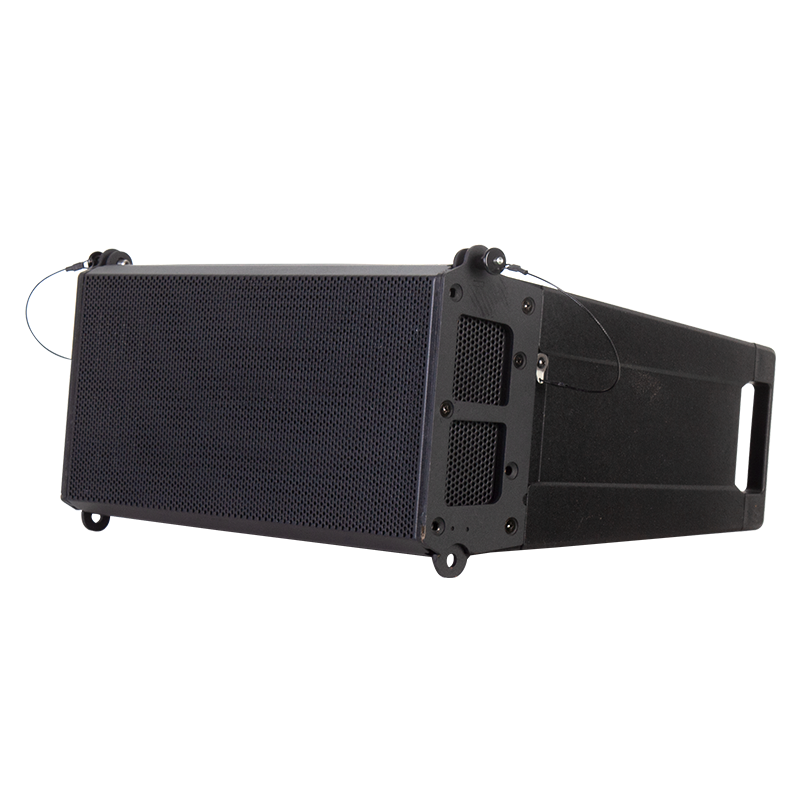

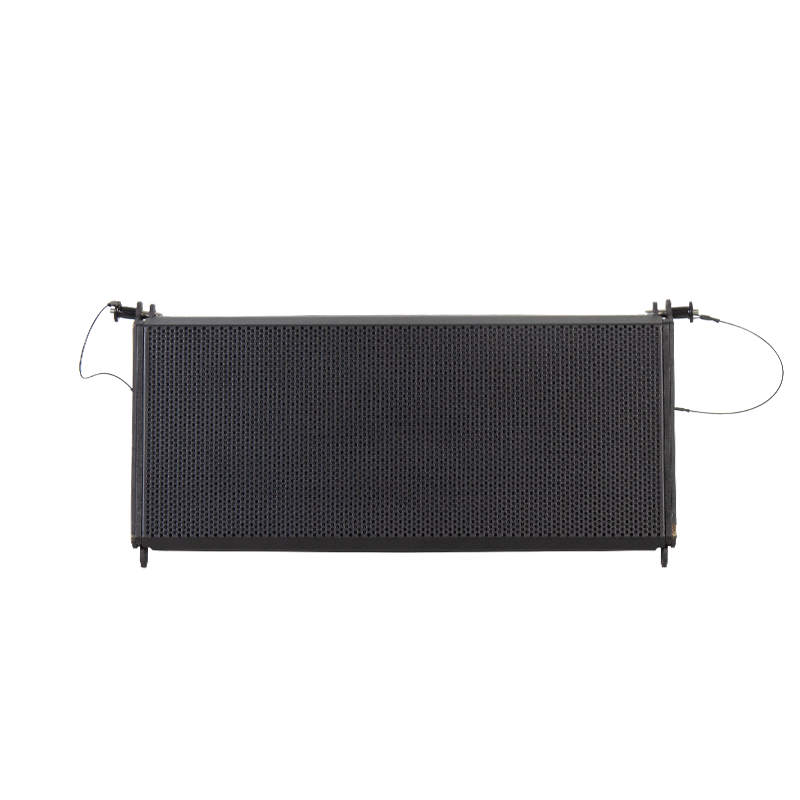

Powered 2-way active line array speaker |
Double 6 inch line array speaker box, 250W RMS |
Built-in Class D amplifier active speaker system |
 |
 |
 |
||||||
| Durable PP cabinet with metal bracket and handle | Built in DSP effects for better sound | Combine with woofer for line array speaker system |
Speaker Specifications
| Product Type | Active line array speaker | Model No. | HDL26 |
| Amplifier Type | Class-D Digital Amplifier | Power | 250W RMS, 500W Peak |
| Max SPL @ 1m | 131 dB | Frequency Response | 95Hz - 20000Hz |
| Sensitivity | 95 dB | Crossover Frequencies | 2.0 KHz |
| Woofer | 2*6.5 Inch, 2" v.c. with 40 OZ ferrite magnet | Tweeter | 36mm Ti Diaphragm compression driver |
| Mixer Function | DSP, Limiter | Control Knobs | Volume, DSP Effects |
| Protections | Thermal, RMS | Coverage Angle | 100°x 60°(H x V) |
| Input Connectors | Combo*1 | Output Connectors | male XLR*1 |
| Box Materials | PP Cabinet, Steel Grille. | Power Supply | AC 110V~220V |

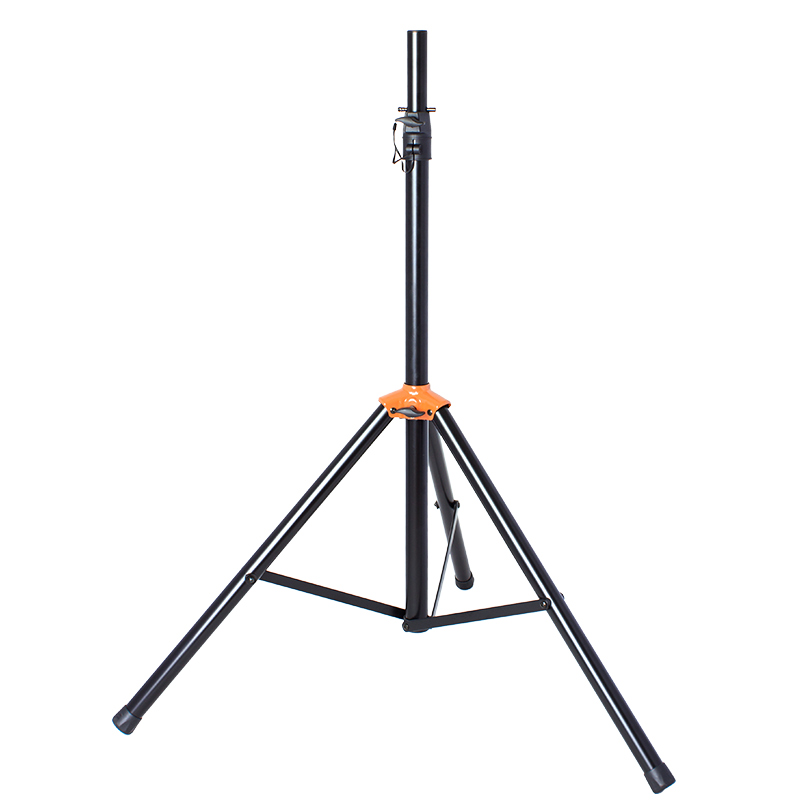

| Transportation | Side handle*2 | Pole mount | line array bracket |
| Unique services | Sample and high quality graphic are available | ||
Accessories Options
 |
 |
 |
||||||
| High quality solid carrying case is available | PU Carrying bag is available | Detachable microphone is available |
Products FAQ
- What is the power rating?
The internal Class-D amplifier is rated at 250 W RMS. -
Is the speaker active or passive?
It is an active (powered) speaker—no external amplifier is required. -
How do I adjust the volume?

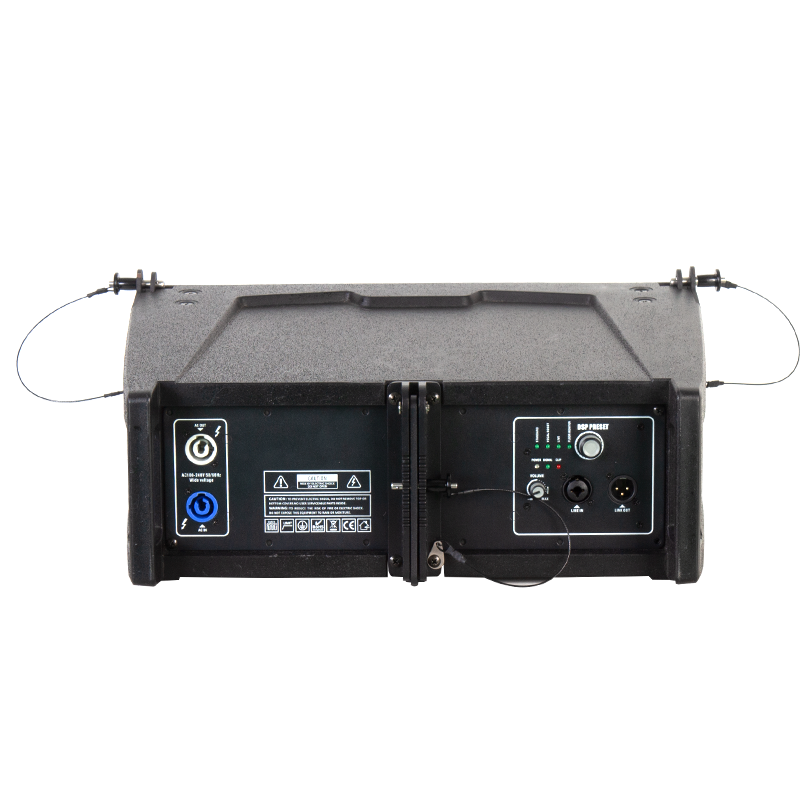

A single knob on the rear panel controls the input gain and overall level after DSP processing. -
What does the built-in DSP offer?
A programmable DSP with four preset modes optimized for speech, live music, DJ playback, and monitor use. Switch modes with the push-button next to the volume knob. - How do I select a DSP mode?
Power on the unit, press the mode button repeatedly until the LED indicator shows the desired preset (1–4). Changes take effect immediately. - What kind of cabinet material is used?
Impact-resistant polypropylene (PP) enclosure with a perforated steel grille for driver protection. - Is it suitable for outdoor use?

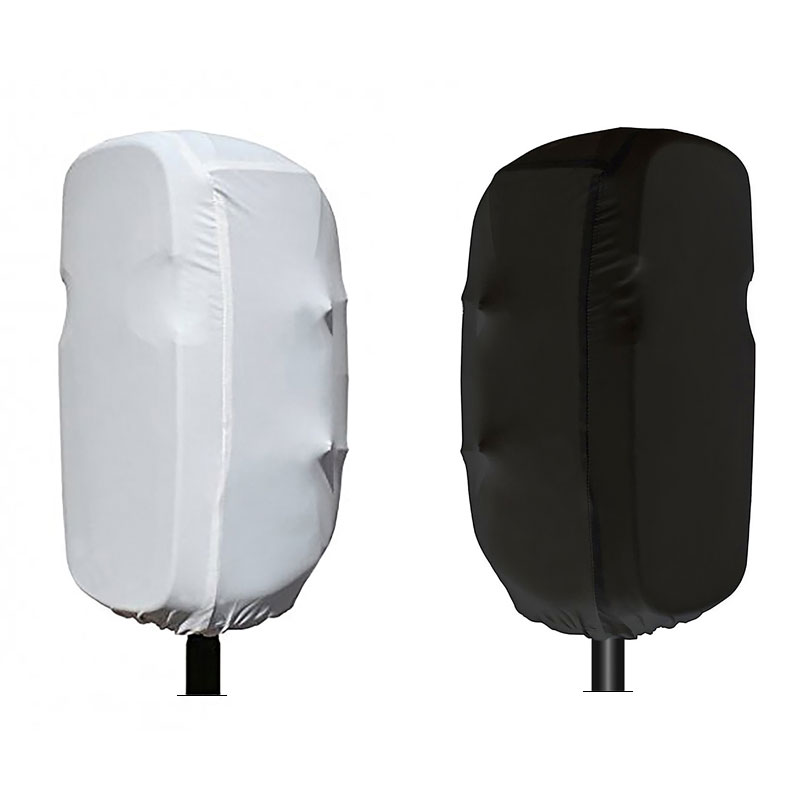

The PP enclosure is UV-stable and the grille is powder-coated for weather resistance, but the electronics are not IP-rated. Use a rain cover for prolonged exposure. - Does it have Bluetooth or a media player?
No. This model is designed for professional audio sources only—connect via the XLR/TRS combo input. - What warranty is included?
Standard 1-year limited warranty covering parts and labor; optional 3-year extended coverage is available through authorized dealers. - Which applications is it best suited for?
Outdoor events, parties, mobile DJ setups, small concerts, fitness classes, presentations, and any travel performance requiring compact, high-quality sound reinforcement.
Package Description
 |
 |
| Universal speaker box with foam inside | Customized speaker box is available |
